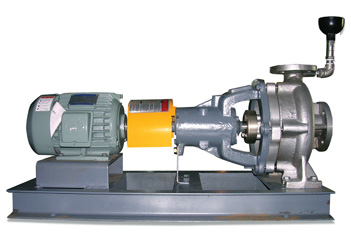

1. ̻̽ Ŀ

⹰ ̼۽ ,

ּȭ ȴ.

2. ⱸ ߾ ο ġƿ

߿ BALANCE

3. BACK PULL OUT ؽ

ü

4. ͷ ̿Ͽ

̼ 70%Ǵ

̼۰.

ȭ, , , , ǰ ⹰ ó

ȭ÷Ʈ, ó, ϼ ó, Ϲ ó

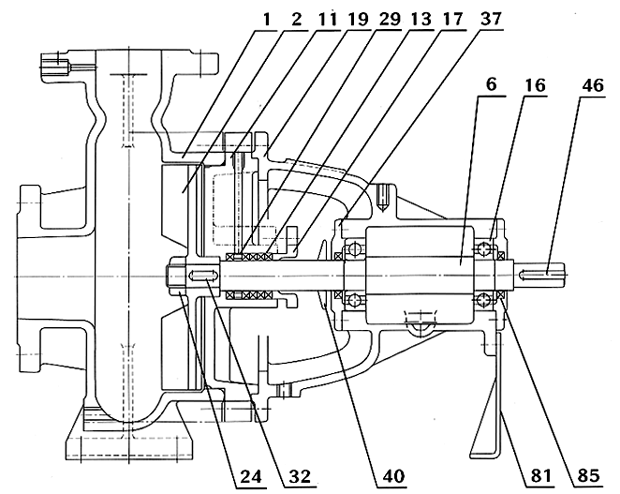

NO

NAME

NO

NAME

1

CASING

24

IMPELLER NUT

2

IMPELLER

29

LANTERN RING

6

SHAFT

32

IMPELLER KEY

11

STUFFING BOX COVER FOR PACKING

37

OUTBOARD BEARING COVER

13

PACKING

40

DEFLECTOR

14

SLEEVE

46

COUPLING KEY

16

INBOARD BEARING

81

SUPPORT

17

PACKING GLAND

85

OIL SEAL

19

FRAME(BEARING HOUSING)











MODEL

DVX

~5m3 / min

Ѿ

~50m

з

10kgf/cm2

ȸ

1750min-1 or 1160min-1

ȸ

Clock Wise

µ

~135°C

 Ratings : KS 10kgf / cm2

 facing : FF . RF

 Location : End Suction, Top Discharge

ġ

Conventional Packing or Mechanical Seal

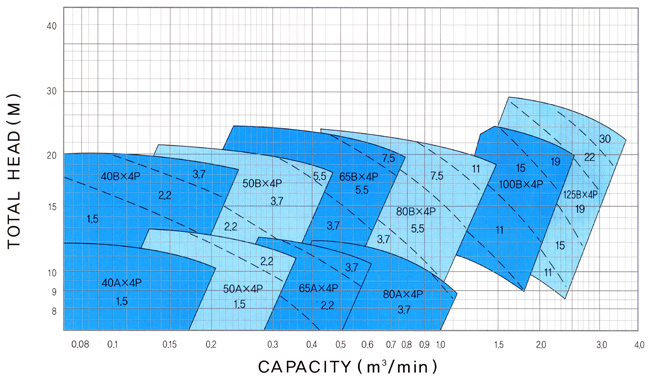

MODEL

BORE

SPECIFICATION

IMPELLER

CASING

M/SEAL
DIA

BEARING
NO

PACKING
SIZE

(SUC, X DIS)

Q(M3/min)

H(M)

P(KW)

OUT DIA

THICKNESS

DVX-40A

Ø50XØ40

0.15

10

1.5

Ø170

7

Ø30

#6306ZZ

8

50A

50 X 40

0.25

10

2.2

170

7

30

6306ZZ

8

65A

65 X 50

0.5

10

3.7

170

7

30

6306ZZ

8

80A

80 X 65

0.9

10

5.5

170

8

30

6306ZZ

8

40B

50 X 40

0.15

17

2.2

220

8

30

6306ZZ

8

50B

50 X 40

0.25

17

3.7

220

8

30

6306ZZ

8

65B

65 X 50

0.6

17

5.5

220

8

30

6306ZZ

8

80B

80 X 65

1.0

17

7.5

220

8

30

6306ZZ

8

100B

100 X 80

1.5

22

15

240

8

40

6308ZZ

9.5

125B

125 X 100

2.0

22

19

245

9

40

6308ZZ

9.5

150B

150 X 125

3.0

22

22

245

11

40

6308ZZ

9.5
